VEO4K PL



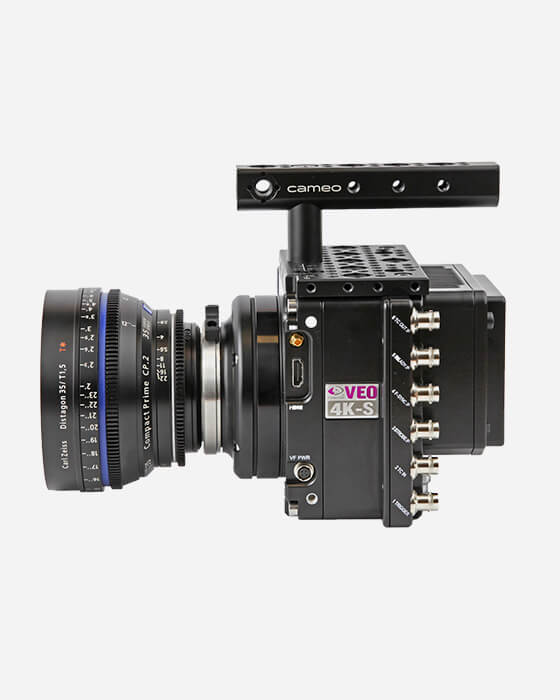

Phantom VEO cameras are compact, rugged and full of premium features. The 4K-PL model is tailored for the media industry, offering 4K resolution at up to 1000 fps.

The VEO4K-PL includes on-camera controls, support for CFast cards, 3G-SDI outputs and a secondary battery input in a black housing with support for many cine-style accessories.



Throughput/Speed

9 Gpx/s, Max speed at full resolution of 4096 x 2304 is 938 fps, At 4096 x 2160 max speed is 1000 fps, At 2048 x 1080 max speed is 1977 fps, Min frame rate of 24 fps

Sensor Specifications

CMOS sensor, 4096 x 2304 pixels, 6.75 µm pixel size, 27.6 mm x 15.5 mm, Super-35mm; 31.7mm diagonal, Super-16mm format at 1920 x 1080, Global Shutter (GS): Base ISO 640T Color; 5000T Mono., Rolling Shutter (RS): Base ISO 320T Color; 2000T Monochrome, Recommended Exposure Index range: 1000-1600 Color; 10,000-20,000 (GS); 4000 – 8000 (RS) Monochrome

Exposure

5 µs minimum exposure.
Global shutter (default).
Exposure Index (E.I.) for controlling apparent ISO
VEO4K also supports rolling shutter mode for increased dynamic range and limited need for black reference. In rolling shutter mode the scan time is 1-millisecond.

Memory

18 GB, 36 GB, 72 GB high-speed internal RAM, On-board removable CFast 2.0 cards (S-models) up to 256GB

Record Times

6 seconds at maximum frame rate, largest resolution and into maximum internal memory

Special Features

10Gb Ethernet (optional), Segment memory for up to 63 cines in multi-cine mode, Continuous recording, Programmable I/O, HD-SDI and HDMI video, Event marking, Frame timestamp (IRIG or SMPTE), IRIG in/out (modulated and unmodulated), Shutter off mode for PIV exposure, 7.5 µs straddle time, Standard Internal mechanical shutter for automatic/remote Current Session Reference (CSR), Image-Based Auto-Trigger (IBAT), One 12 VDC, 6W auxiliary power port, Secondary IP address, Field-based firmware upgrade capable

Triggering

Programmable trigger location (pre/post trigger recording), Image-Based Auto-Trigger standard, Trigger from software, Trigger from on-camera controls (S-model), Hardware trigger BNC

Timing & Synchronization

SMPTE time code support, Frame synchronization to internal or external clock (FSYNC), IRIG in/out (modulated or unmodulated)

Signaling

Dedicated Trigger and Timecode In BNCs on camera body, Range Data input on S-model camera body (Fischer), Programmable I/O ports includes adjustable (assign and define) signals including F-sync, strobe, event, trigger output, ready and more

Ethernet Connection

Gb Ethernet (standard);
10Gb Ethernet (optional), for control and data downloads. Fischer port on S-models; RJ45 port on L-models

Camera Control

On-Camera Controls (OCC) on S-model camera, Phantom Camera Control software (PCC), SDK available

Video Out

3G HD-SDI and HDMI on all VEO models.
Additional 3G HD-SDI BNC port on back of S-model.
Supports up to 1080p60.

Lensing

Nikon F-mount standard, supports F & G style lenses
Canon EOS mount optional (compatible with Flex4K-style EOS mount).
PL-mount optional (compatible with v-Series PL mount)
C-mount optional (VEO-4K specific)

Video Processing

Brightness, Gain, Gamma, Saturation, Hue, White Balance, Color interpolation algorithm, Flare, Pedestal, Tone curve, Filters, Color matrix, Image flip and rotate, Crop, Scale

Data Acquisition

National Instruments M- and X-Series DAQ modules with integrated support in PCC

Motion Analysis

Basic measurements via Phantom Application:
Distance, Speed, Acceleration, Angles and Angular Speed, Manual and Automatic point collection for target tracking, Compatible with 3rd party solutions

Supported File Formats

Cine, Cine Compressed, Cine RAW, AVI, h.264 mp4, Apple ProRes .mov, Multipage TIFF, MXF PAL, MXF NTSC, Uncompressed QuickTime, Windows BMP, OS/2 BMP, PCX, TGA, TIFF, LEAD, JPEG, JTIF, RAW, DNG, DPX

Power

100 – 240 VAC, 16-32 VDC via primary power input.
80 Watt 24V power supply included, Secondary power input, down to 12V via capture port on S-model cameras

Mechanical Specifications

Size (without lens): 5.0 x 5.5 x 6 inches (L x W x H); 12.7 x 14 x 15 cm, Weight: 6 lbs (2.5 kg)

Environmental Specifications

Operating Temperature: -10°C – +50°C

APIs

Phantom SDK, LabView, MatLab

Ships Standard With

Power supply, Ethernet cable, SDI DIN Cable, Phantom PCC software, Getting Started Guide

Options

C-mount, Canon EOS lens mount, PL-mount, OLPF

Popular Accessories

Handle, Cheese Plate, V-Lock and Gold-mount side Battery mounts (S-model), Cameo VEObob for added power outputs and remote port (S-model), Case with custom foam
