MIRO N5

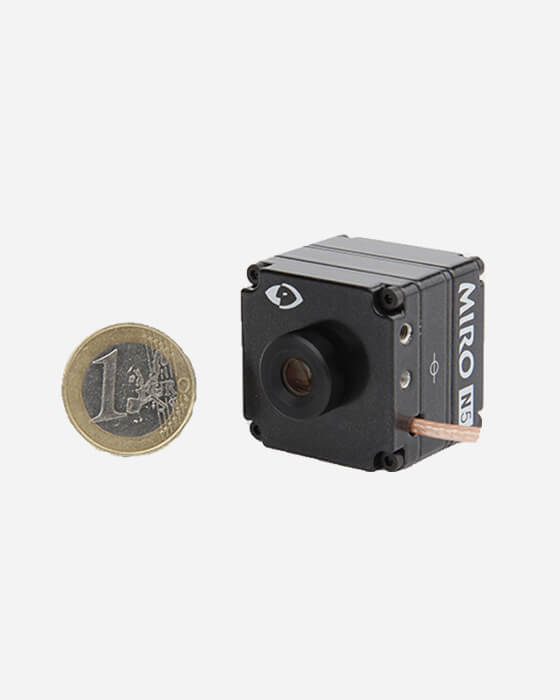

The Miro N-Series is comprised of the tiny, Hi-G Miro N5 camera head, CXP cable, and the Miro N-JB base. The Miro N5 fits into the smallest spaces, images are transferred instantaneously to the Miro N-JB Base, to securely save them.

Throughput/Speed

250 Mpx/second, Max speed at full resolution of 768 x 600 is 560 fps, maximum speed at reduced resolution of 128 x 32 is 9,055 fps., Min frame rate of 30 fps.

Sensor Specifications

CMOS sensor, 768 x 600 pixels, 4.8 x 4.8 um pixel size, 4.8 mm diagonal (4.68 mm diag), 10-bit, ISO – Monochrome 2,000D; 4,000T, ISO – Color 400D; 400T

Exposure

30 µs minimum exposure, Extreme Dynamic Range (EDR)

Memory

8GB internal RAM, 128GB internal, non-removable CineFlash

Record Times

21 seconds at maximum frame rate, 10-bit depth, largest resolution and into maximum internal memory

Special Features

Segment memory for up to 63 cines in multi-cine mode, Continuous recording, Memory gate, Event marking, Frame timestamp, IRIG In (modulated or unmodulated), IRIG Out (unmodulated), Image-Based Auto-Trigger (IBAT), HD-SDI Video, Secondary IP address, Field-based firmware upgrade capable

Triggering

Programmable trigger location (pre/post trigger recording), Image-Based Auto-Trigger standard, Trigger from software, Hardware trigger BNC on Miro Junction Box

Timing & Synchronization

Frame synchronization to internal or external clock (FSYNC), IRIG In (modulated or unmodulated), IRIG Out (unmodulated)

Signaling

System/Camera connector (Trigger, IRIG in, IRIG out, Ready, Aux, Ethernet) (Aux signal can be assigned to Event, Memgate or FSYNC)

Ethernet Connection

Gb Ethernet for control and data. Ethernet is accessed through the system cable.

Camera Control

Phantom Camera Control software (PCC), Multi-Cam software, Remote Control Unit (RCU): Miro N-JB Base has "remote" connectors to connect to an RCU, SDK available

Video Out

HD-SDI available through BNC connector on the base

Lensing

M12/S mount

Video Processing

Brightness, Gain, Gamma, Saturation, Hue, White Balance, Color interpolation algorithm, Flare, Pedestal, Tone curve, Filters, Color matrix, Image flip and rotate, Crop, Scale

Data Acquisition

National Instruments M- and X-Series DAQ modules with integrated support in PCC

Motion Analysis

Basic measurements via Phantom Application:
Distance, Speed, Acceleration, Angles and Angular Speed, Manual and Automatic point collection for target tracking, Compatible with 3rd party solutions

Supported File Formats

Cine, Cine Compressed, Cine RAW, AVI, h.264 mp4, Apple ProRes .mov, Multipage TIFF, MXF PAL, MXF NTSC, Uncompressed QuickTime, Windows BMP, OS/2 BMP, PCX, TGA, TIFF, LEAD, JPEG, JTIF, RAW, DNG, DPX

Power

N5 Camera head: 16 – 32 VDC, 2.5 W, typical, BASE: 16 – 32 VDC, 10 W typical, 18W during battery charge., Rechargeable battery in Base for back-up.

Mechanical Specifications

N5 Camera head: 32 x 32 x 28 mm (H x W x D) without lens, Weight: 0.2lb, 0.09kg, Base: 187 x 53 ½ x 75 mm (L x W x H), with Miro Jbox bolting pattern, Weight: 1.4lb, 0.64kg

Environmental Specifications

Miro N5 Head: Operating Temperature: 0°C – 50°C, Storage Temperature: -20°C to +70°C, Shock:150G IAW MIL-STD 202G (without lens), Miro N-JB Base: Operating Temperature: 0°C – 50°C, Storage Temperature: -20°C to +70°C, Shock:170G IAW MIL-STD 202G, Vibe: 20.7Grms IAW MIL-STD 202G

APIs

Phantom SDK, LabView, MatLab

Ships Standard With

6MM S-mount lens, Hex-L key, Locking Ring, Mounting Bracket, PCC software, Getting Started Guide, Cables and Power supply purchased separately with Miro Junction Box

Popular Accessories

Remote Control Unit, Miro Junction Box, Miro System cable, Ruggedized Ethernet, Control Breakout Box, 280W Power supply for Miro Junction Box
